When compared to standard, all numbers are based on basic wash cycle
Single-Arm Touchless Pro
The StarWash system is designed around a practical operating objective: produce a high-quality wash while controlling space requirements, cycle time and maintenance demands. Its compact configuration makes it suitable for single-bay operators, retrofits and sites where a larger dual-arm or tunnel system may not be practical.
The ultra-articulated arm moves around the vehicle to provide cleaning from a single mechanical assembly. Smart sensors detect the vehicle’s size and shape, allowing the control system to adapt arm movement and maintain a consistent working distance.
This intelligent vehicle detection supports:
Maintaining the correct nozzle distance is essential in a high-pressure touchless car wash. If the spray is too far away, cleaning performance can decline. If it is unnecessarily close, the system may waste energy or create uneven coverage. The StarWash control logic helps balance pressure, movement and distance throughout the cycle.

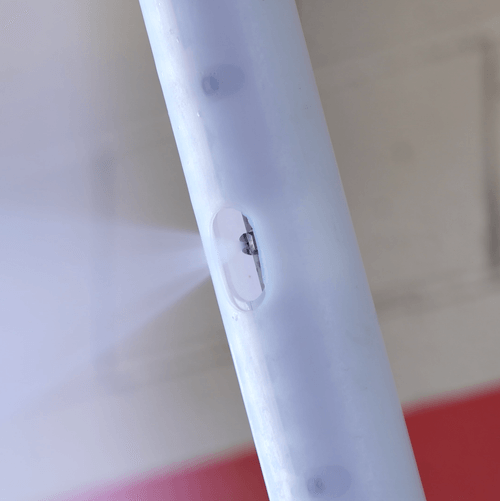

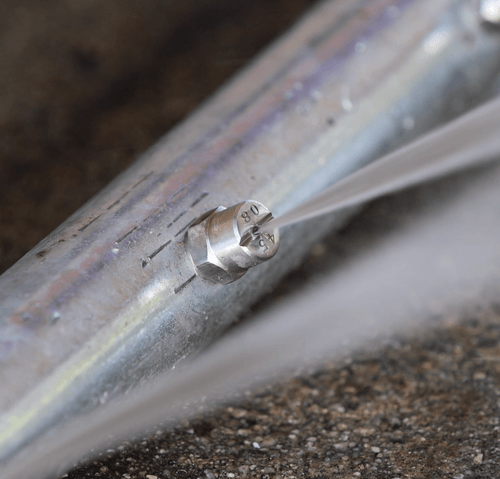

StarWash combines high-efficiency pumps, turbo nozzles and a two-step presoak to loosen road film, organic matter and mineral residue before rinsing. Automatic chemical proportioning supports consistent cleaning while reducing waste. Operators can also configure triple foam, wax, undercarriage cleaning, waterfall treatments and spot-free water into multiple wash packages.
The default configuration completes a basic wash in approximately 2.5 minutes. Actual cycle time depends on the selected services, vehicle positioning and wash package, but the system is designed to keep queues moving without compromising the core cleaning sequence.
A faster cycle can help operators:
Throughput should always be evaluated alongside wash quality, drying performance and local demand. StarWash can help configure the equipment around the operator’s expected volume rather than relying on a generic cycle.
Single-Arm Touchless Pro
Touchless Wash Cycle
Wash Process
A successful touchless cycle is more than a high-pressure rinse. It is a coordinated process that applies chemistry, water and drying power in the correct sequence. StarWash gives operators the flexibility to create multiple wash programs while maintaining a clear, repeatable customer experience.
The cycle can begin with undercarriage cleaning to remove salt, mud and road debris. Two presoak solutions then loosen surface contamination before the rotating arm applies high-pressure water across the vehicle. This staged process improves cleaning efficiency and reduces the need for excessive pressure or unnecessarily long wash cycles.
Operators can build differentiated wash packages using visual and protective applications. Triple foam creates a premium customer experience while distributing additional cleaning chemistry across the vehicle. A wax or protectant application can improve shine and support water beading after the rinse.
A spot-free rinse uses treated water to reduce visible mineral deposits as the vehicle dries. The available reverse-osmosis system delivers a listed flow rate of 4.4 gallons per minute and supports a cleaner final appearance.
Configurable options may include:
These services can be grouped into good, better and best packages, giving customers a clear upgrade path at the kiosk.
The standard system includes four 7.5-horsepower dryers, providing 30 horsepower of drying power. Contouring housings guide air across the vehicle for more complete water removal. Operators can upgrade to six 10-horsepower blowers for up to 60 horsepower, with variable-speed controls and configurable drying times.
The 22-inch capacitive touchscreen clearly presents wash packages, upgrades and subscriptions. An octa-core processor supports responsive operation, while Wi-Fi, Bluetooth, a webcam, microphone and printer expand its capabilities. By presenting relevant upgrades before entry, the kiosk can help increase average transaction value.
Customers can pay using major credit cards, Apple Pay, Google Pay or Samsung Pay. Tap-based checkout reduces friction and helps keep queues moving. Integrated processing also connects the kiosk, wash controller and payment system within one StarWash workflow.
Per transaction starting at
Car wash equipment operates in a demanding environment where water, chemicals, humidity and continuous movement can expose weak components quickly. StarWash focuses on durable materials, configurable controls and simplified operation to support long-term uptime.
